商品描述 配置参数
CPU
 Build in AMD AM4 Socket 3rd Gen  AMD Ryzen™ Processors *
Chipset
 AMD B550
Memory
 3rd Gen AMD Ryzen™ Processors

 4 x DIMM, Max. 128GB, DDR4  4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133  MHz Un-buffered Memory *

 Next Generation AMD Ryzen PRO Processors

 4 x DIMM, Max. 128GB, DDR4  4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133  MHz Un-buffered Memory *

 Dual Channel Memory Architecture

 ECC Memory (ECC mode) support varies by CPU.
Graphic
 1 x D-Sub

 1 x DVI-D

 1 x HDMI 2.1(4K@60HZ)
Expansion Slots
 3rd Gen AMD Ryzen™ Processors

 1 x PCIe 4.0 x16 (x16 mode)

 AMD B550 Chipset

 2 x PCIe 3.0 x1

 Storage

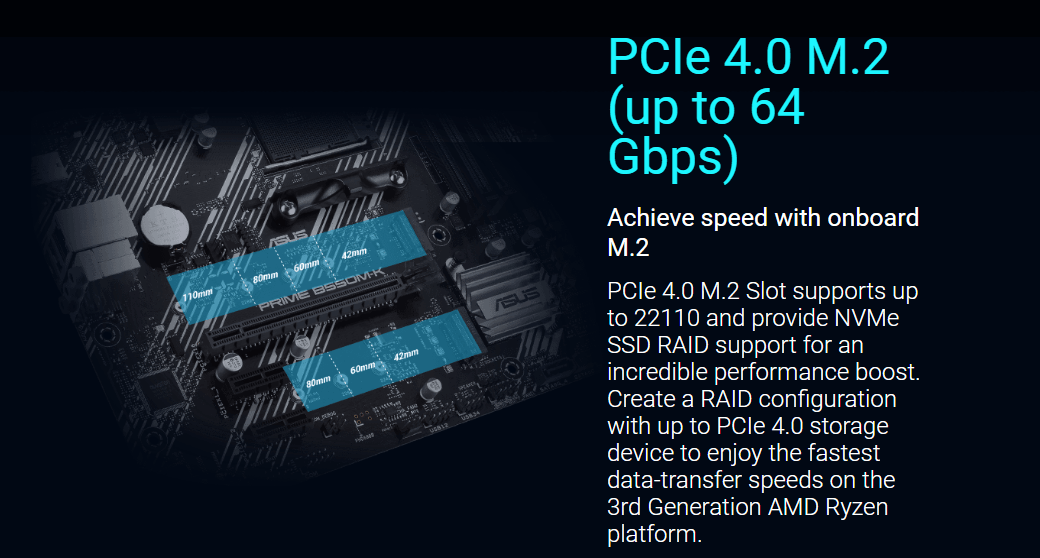

 Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

 3rd Gen AMD Ryzen™ Processors :

 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE  4.0 x4 and SATA modes) storage devices support

 AMD B550 Chipset :

 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4  and SATA modes) storage devices support

 4 x SATA 6Gb/s port(s),

 Support Raid 0, 1, 10
LAN
 Realtek RTL8111H 1Gb Ethernet
Audio
 Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

 - Supports : Jack-detection, Multi-streaming, Front Panel  Jack-retasking, up to 24-Bit/192kHz playback

 Audio Feature :

 - LED-illuminated design

 - Audio Shielding

 - Dedicated audio PCB layers

 - Premium Japanese audio capacitors
USB Ports
 Rear USB Port ( Total 6 )

 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)

 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

 Front USB Port ( Total 6 )

 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

 4 x USB 2.0 port(s)(4 x Type-A)
Software Features
 ASUS Exclusive Software

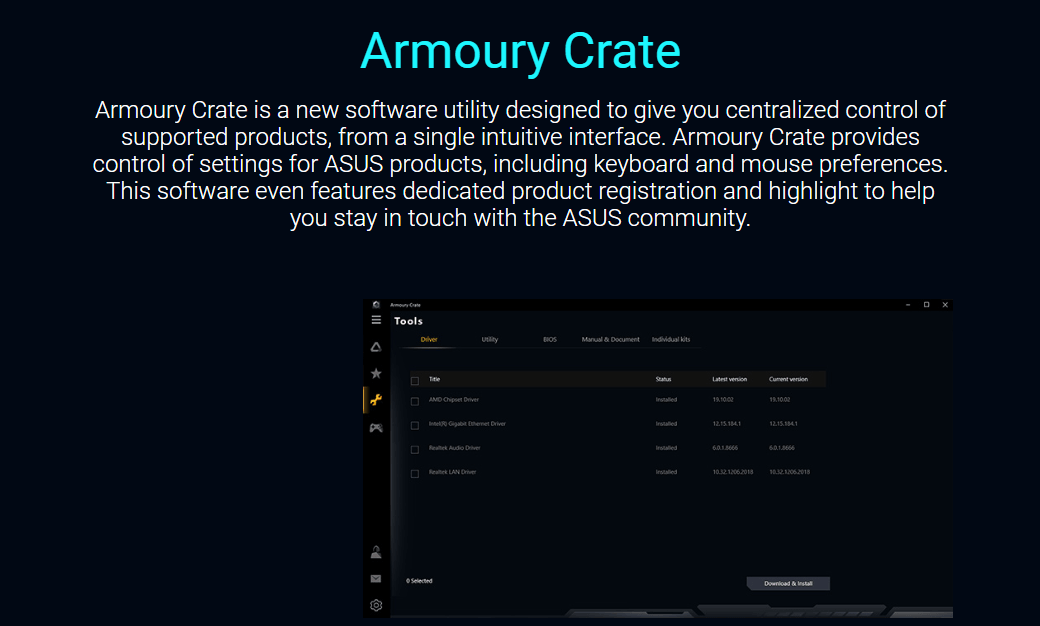

 Armoury Crate

 AI Suite 3

 - Performance And Power Saving Utility

 TurboV EVO

 EPU

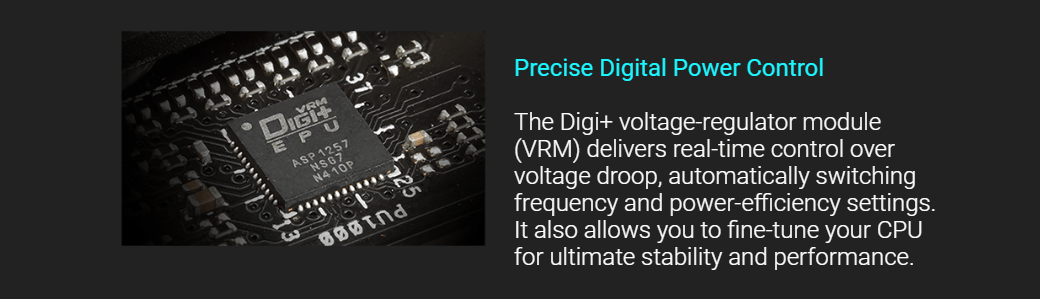

 Digi+ VRM

 Fan Xpert 2+

 - EZ update

 ASUS CPU-Z

 AI Charger

 DAEMON Tools

 Norton Anti-virus software (Free Trial for 60 days)

 WinRAR

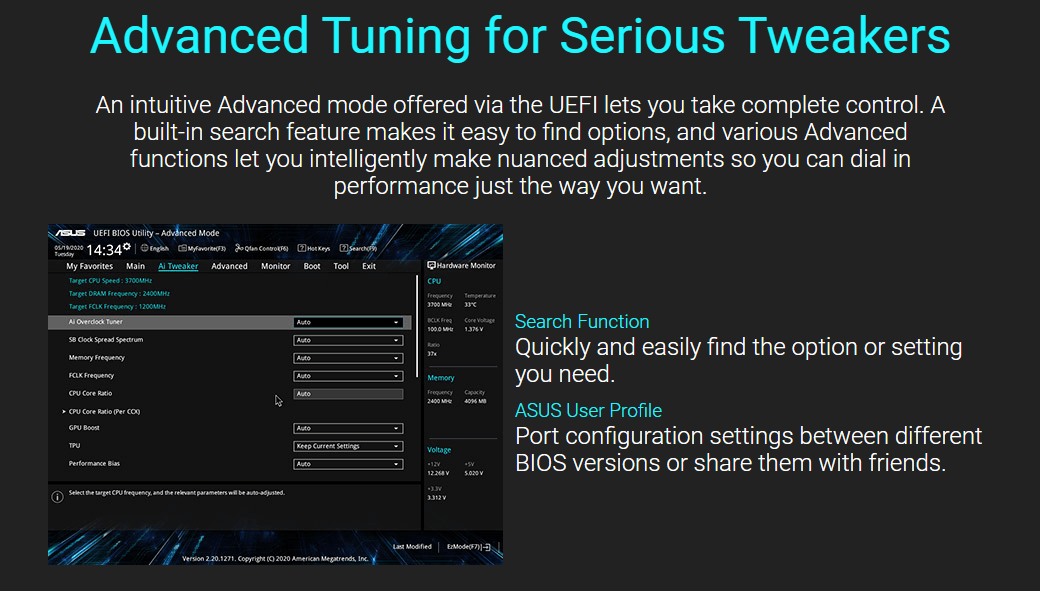

 UEFI BIOS

 ASUS EZ DIY

 - ASUS CrashFree BIOS 3

 - ASUS EZ Flash 3

 - ASUS UEFI BIOS EZ Mode
ASUS Special Features
 ASUS 5X PROTECTION III

 - ASUS DIGI+ VRM

 - ASUS LANGuard

 - ASUS Overvoltage Protection

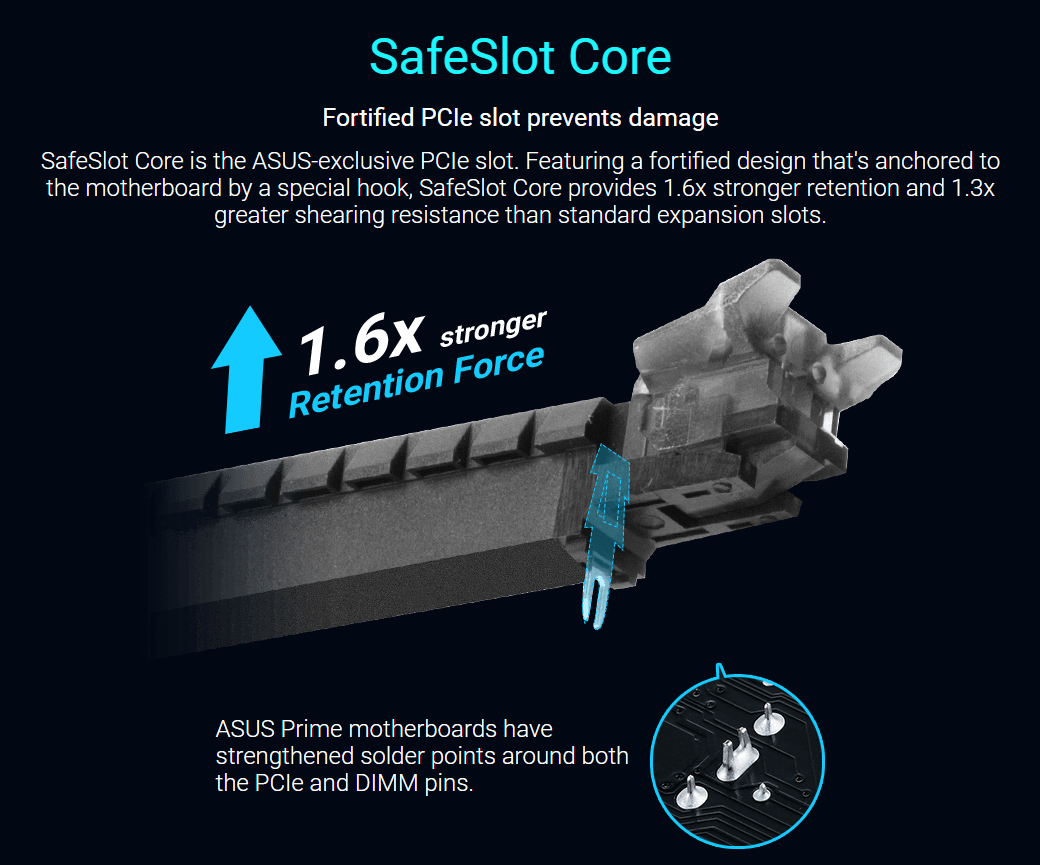

 - ASUS SafeSlot Core

 - ASUS Stainless-Steel Back I/O

 ASUS Q-Design

 - ASUS Q-DIMM

 - ASUS Q-Slot

 ASUS Thermal Solution

 - Aluminum heatsink design

 ASUS Lighting Control
Back I/O Ports
 1 x PS/2 keyboard/mouse combo port(s)

 1 x DVI-D

 1 x D-Sub

 1 x HDMI

 1 x LAN (RJ45) port(s)

 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)

 4 x USB 3.2 Gen 1 (blue) Type-A

 3 x Audio jack(s)
Internal I/O Ports
 1 x CPU Fan connector(s)

 2 x Chassis Fan connector(s)

 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s)  additional 2 USB 3.2 Gen 1 port(s)

 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0  port(s)

 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage  devices support(SATA & PCIe 4.0 x4 mode)

 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage  devices support (SATA & PCIE 3.0 x 4 mode)

 1 x SPI TPM header

 4 x SATA 6Gb/s connector(s)

 1 x S/PDIF out header(s)

 1 x 24-pin EATX Power connector(s)

 1 x 8-pin EATX 12V Power connectors

 1 x Front panel audio connector(s) (AAFP)

 1 x Clear CMOS jumper(s)

 1 x System panel connector

 1 x COM port header

 1 x Speaker connector
Accessories
 User's manual

 I/O Shield

 2 x SATA 6Gb/s cable(s)

 1 x Supporting DVD

 1 x M.2 SSD screw package(s)
BIOS
 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
 WOL by PXE
Operating System
 Windows® 10 64-bit
Form Factor
 mATX Form Factor

 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
